DUMP BODIES

All of our dump bodies are built with the same material as a trailer dump. We overbuild our bodies to last a long time not to just be light. Light aluminum bodies don't make it in the work environment. All upright aluminum for our headboard and sides is 3/16" 5052 aluminum. Our floors and tailgate are plate style with 1/4" or 3/8" for extreme duty applications. Our cross members are I-beam on 12" centers, Typically 3" on 1 ton bodies and 4" on everything else. Our long sills on our dumps are heavy structural channel. Our smaller bodies will have a 5" channel longsill with a .497" wall, compare that to the lightweights available. We also have a unique latch system for our tailgates. We developed a linear style cam latch for the tailgate that allows the latch rod running from front to back to travel in a straight line. There is no bell crank or rotating linkage like the conventional style latches. This allows us to keep the toolboxes up much higher than the competition. Our rear shaft for our lower latch is actually mounted in bronze bearings. Our latch rods are all billet aluminum as well. Our bodies are constructed to last many years and possibly 2 or 3 chassis depending on how you take care of them. Please feel free to call with any questions or needs you may have.

Road-Craft 150" Dump Body

• Built on a new Chevy 5500 with air ride
• 20" sides
• 26" tailgate
• Air ride option changes the frame length from 11' to 12'4"
• Rugby SR5020 hoist
• Aero tarp system

Road-Craft 10' Dump Body

• 48" sides
• 1/4" walls and tailgate
• 3/8' floor
• Utiliozing existing Champion hoist

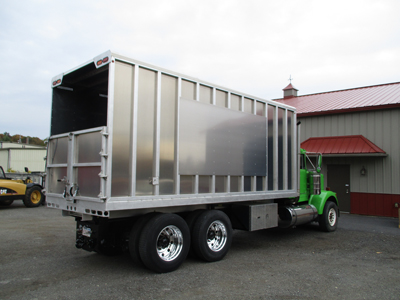

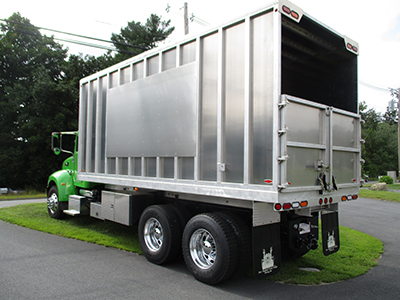

20 Foot Chipper Box Take 2

• We built one of these last year and it worked out well enough to justify a second one
• Older KW, chassis completely gone through
• Cab painted bright green
• Rugby LR2288 twin cylinder hoist
• The box has a clear inside height of 8'
• Protech underbody boxes

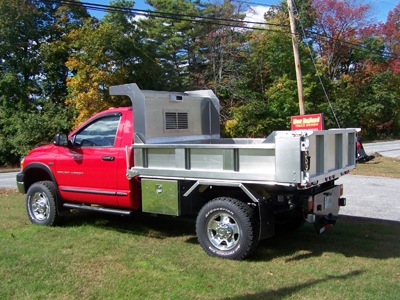

8 Year old Road-Craft 3/4 Yard Dump with Fold Down Sides

• Installed on a new Ram 5500
• New Rugby 4016 hoist
• Protech toolboxes with all mirrored stainless doors
• Sanded and polished by Billy B.

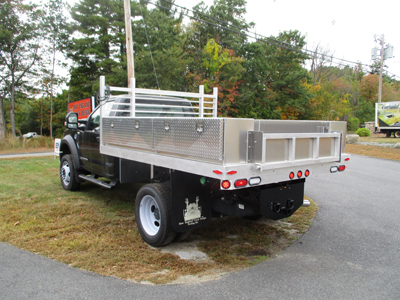

Road-Craft 9.5' Dumping Flatbed

• Rugby 4016 Hoist
• Protech toolboxes
• Removable rear rack that stores forward
• Drop down tailgate

New F550 with Alcoa aluminum wheels

• Road-Craft 4-5 yard body, 20" sides and 26" tailgate
• Road-Craft smooth fenders
• Maxxima lighting in the side rails
• Maxxima strobe lights in the rear
• Rugby SR5020 hoist, power up and down

Road-Craft 9'4" fold down side 3-4 yard dump

• New tailgate design with built in deflector at the top
• Rugby SR5020 hoist
• Protech 30" toolboxes with stainless doors
• Road-Craft 12 gauge mirror stainless fenders
• Break away steps at the rear
• Removable window over lay panel with a smaller Lexan window in it
• Buyers tarp roller built into the headboard

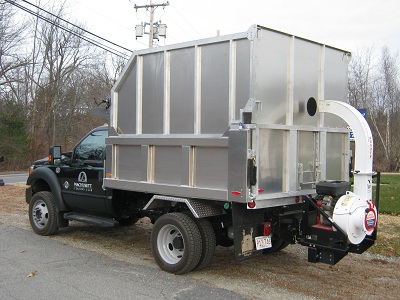

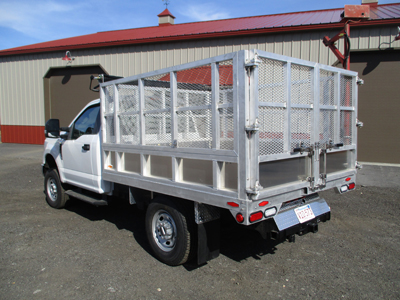

Road-Craft 8.5' low-mount dumping grass body

• We did 3 of these on F350 SRW pickup chassis
• 3 stage telescoping hoist at the front
• Removable expanded metal upper sections for winter use
• Small crane and winch at the rear corner for lifting bags of grass and leaves

Standard Road-Craft 3-4 yard dump body

• Road-Craft fenders
• Maxxima strobe lights
• Rugby SR4016 hoist

Road-Craft Tall Fold-Down Dump Body

• 3 scuttle chutes in the tailgate
• Maxxima strobe lighting
• Rugby hoist power up and down
• Protech toolboxes
• Minimizer fenders

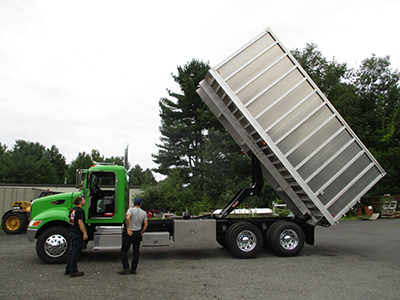

Road-Craft 20' chipper box w/ 8' inside height

• Rugby LR 2866 double piston hoist
• Chelsea hot shift PTO
• Protech toolboxes
• Maxxima strobe lights
• Sign panels on the side
• We shortened the frame and move the axles 36"
• Did the hitch and chassis mods for the hoist
• Sent it out for sandblast and paint by Joe Brady
• Had all of the aluminum polished by Billy B
• Then we put it all together.

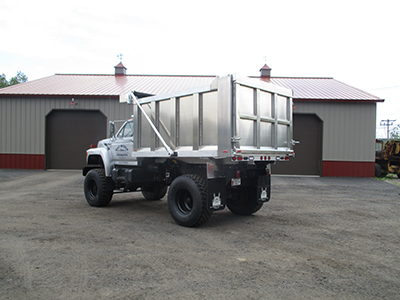

AWD F800 w/ custom Road-Craft 11' dump body

• 54" sides and 60" tailgate
• Walls and tailgates are 1/4"
• Floor is 3/8"
• Heavy duty body
• Airlatch tailgate
• Rugby LR623 hoist
• This delivery won't get stuck!

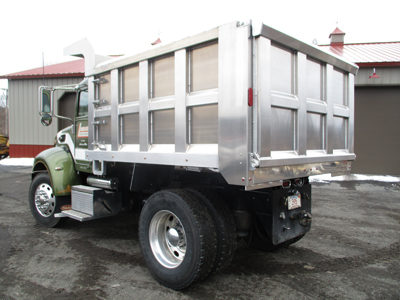

14' Road-Craft dump body

• 54" tall sides
• 3/8" floor
• 1/4" tailgate
• 3/16" walls
• Low tailgate for chipping into
• Buyers electric tarp system
• Replacing a rusted steel body

Road-Craft 12' dump body

• 54" sides
• 1/4" 6-panel tailgate
• 3/8" floor w/ 4" I-beams 12" OC
• Double panel center gate
• Linear actuators for rear and center gate release
• Rugby HR550 hoist
• Protech toolbox
• Fleet Engineering fenders
• Buyers aluminum tarp system
• Truck #2 for this customer

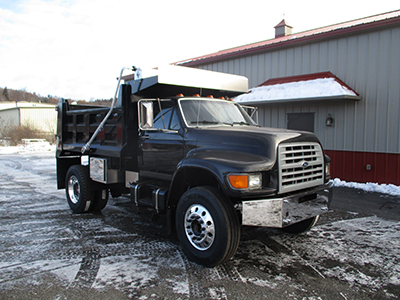

F850 with custom touches

• Kenworth front bumper
• Heated mirrors
• Polished stainless tank straps
• Custom aluminum battery box cover
• Protech tool box w/ stainless door
• Polished aluminum electric tarp system
• Chalk block holders on the drivers side
• New Alcoa aluminum rims and tires
• Great looking truck

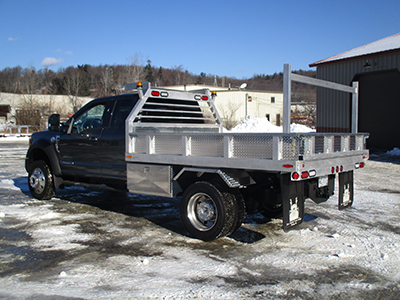

Custom dumping aluminum flatbed

• New F550 from Maine
• Custom dumping aluminum flatbed
• Lift out sides
• Fold down tailgate
• Cab shield on front of headboard
• Removable rear rack
• Road-Craft fenders
• Reverse mounted Rugby hoist
• Custom gooseneck hitch w/ D-rings and 7pin
• 1/2" rear hitch plate
• Protech toolboxes
• Whelen strobe lights mounted on the headboard
• All LED lighting

16' Road-Craft Dump Body

• 60" Sides
• 3/8" thick floor w/ 4" I-beams and 8" longsills
• Lower tailgate for chipping into
• Buyers electric/aluminum tarp system

9.5' Road-Craft Dump Body

• New F550 Lariet
• Frame extended 6" to house 12k Warn winch behind hitch plate
• Extended posts and board pockets
• Maximma LED strobes front and rear
• Rugby HR 550 hoist
• Protech toolboxes w/ stainless steel doors
• Lifetime semi smooth fenders w/ stainless mounts
• Buyers aluminum tarp system
• Grip strut cat walks on the sides of the body and toolboxes

9' Aluminum Dump Body

• 42" sides and tailgate
• Rugby HR 550 hoist
• Clutch pump hydraulics w/ electric valves
• Buyers electric tarp
• Our new Exclusive custom electric tailgate release
• One control box w/ 3 switches: tarp, tailgate, raise body
• Protech toolbox w/ stainless door
• Road-Craft smooth fenders
• All LED lighting

3/4yd Dump Body

• Rugby HR 540 hoist
• Maxxima strobe lights in cab shield and rear valance
• 1/2" hitch plate with 2" receiver tube

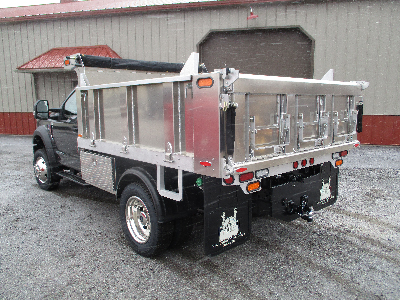

9' 3/4yd Dump Body

• 12" board pockets
• Barn doors inside of tailgate
• 32" cab shield with built in divider
• Trux revolution tail lights
• Maxxima clear marker lights
• Protech stainless fenders
• Protech I-Pack toolbox with stainless doors

11' Dump Body

• 24" sides
• 30" tailgate
• 1/4" 6061 floor
• Rugby HR550 hoist
• Protech toolboxes and fenders
• Buyers electric tarp system
• Maxxima strobe lights
• Trux revolution light for stop/tail/turn and backups
• She's a real beauty

Custom Dump Body

• In front of our new barn

Custom 9' 2/3 yd. Dump Body

• Rugby HR 540 hoist
• Fleet engineering fenders
• Boss 9' stainless steel trip edge plow

Custom 2/3 yd. Dump Body

• Rugby HR 540 hoist
• Fleet Engineering fenders
• Boss 9' stainless steel trip edge plow

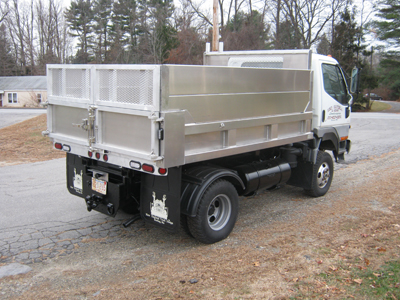

Road-Craft 10' Replacement Dump

• Barn doors at rear
• Scuttle schutes in barn doors
• Rugby HR550 hoist

10' Dump Body

• Fold down sides
• 24" sides
• 36" rear barn doors
• Extended sideboard pockets
• Rugby HR550 with central hydraulics
• Set up for hydraulic sander and plow
• Fleet Engineering fenders
• Phoenix wheel simulators

9' 3/4 yd Dump Body

• Fold down sides
• Scuttle door in tailgate
• Rear window option
• Buyers roll tarp
• Road-Craft smooth fenders
• Maxxima strobe lights in cab shield and rear valance
• All other lighting Maxxima LED

11' 3/4 yd Dump Body

• Fold down sides
• Protech toolboxes
• Road-Craft fenders
• Maxxima strobes in the headboard and rear tail skirt
• Rugby HR 550 hoist

12' Dump Body w/ 54" Sides

• Barn doors at rear
• Rugby HR 550 hoist

3/4 Yard 9' Dump Body

• Rugby HR 540 hoist
• Standard style hitch plate w/ combo hitch
• Buyers roll tarp

3/4 Yard Dump Body

• 1 ton GMC
• Aero aluminum tarp system

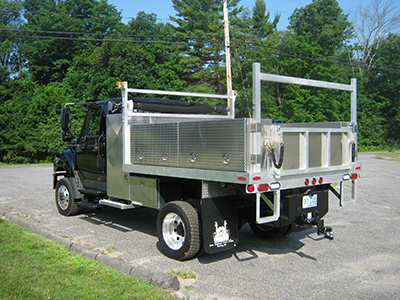

Dumping Terrastar Flatbed

• Custom 30" width I-Pack with pull out drawers
• 30" underbody toolboxes
• 96"x24"x18" top side boxes with doors opening up
• Removable rear rack and tailgate
• Rugby HR 520 hoist
• UWS 40 gallon aluminum tank with Fillrite pump

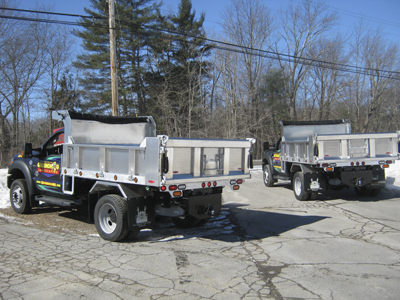

3/4 yd. Aluminum Dump Bodies

• New F550 with Road-Craft aluminum 3/4 yd bodies
• Fold down sides
• 5 marker lights in each side rail
• Wide fenders to hang full width flaps from
• 1/4" tailgate with all 3/16" formed framing
• Scuttle door tailgate
• Maxxima flashers in headboard and below light valance
• Buyers roll tarp built into headboard side panels
• All LED lighting
• Hitch plate w/ combo hitch and D-ring

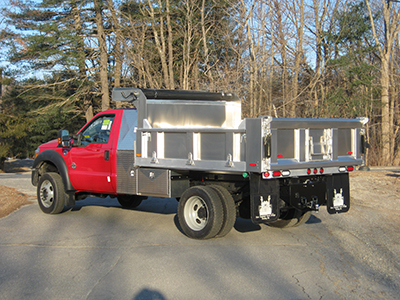

3/4 yd. Aluminum Dump Body

• New F550 with a Road-Craft 3/4 yard dump body
• Fold down sides
• 32" cab shield
• Scuttle door in talgate
• Protech L-Pack toolboxes
• Rugby HR 540 hoist
• Buyers roll tarp built into cab shield
• All LED lighting

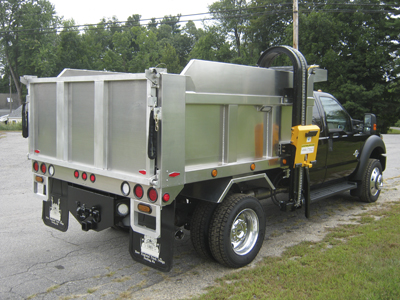

Tall Sided Aluminum Dump Body

• New 08 Ford F-550
• Tall sided dump body with barn doors
• Rugby HR 540 Hoist
• Protech underbody boxes with polished doors
• Stainless tube steps under cab
• Built in recessed step in the body latch box
• 1" tie rail on the body
• Pioneer roll tarp
• Receiver style hitch plate

Tall Sided Aluminum Dump Body

• Tall sided dump body
• Custom fenders
• Pro-Tech toolboxes
• Custom upper tailgate snaplatch latch assembly

8' Aluminum Dump Body

• Chevy 1 ton with an 8'x88" aluminum dump body
• Fold down sides with aluminum hinges
• Whelen strobe light system
• Pioneer tarp

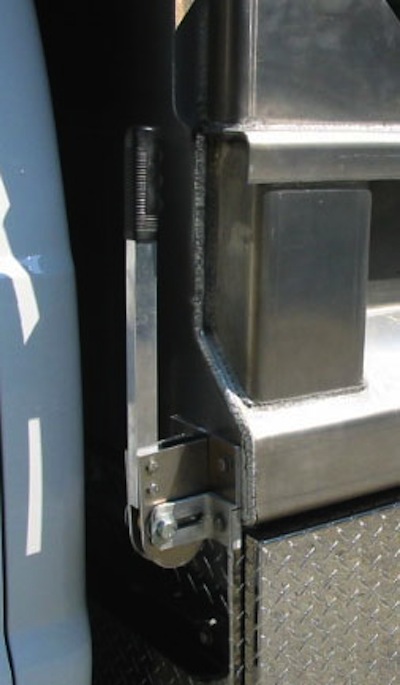

Latch Detail

• Close up of our unique cam style tailgate latch
• It allows the latch rod to run in a straight line
• Check out how close the toolbox is to the body
• Cant do that with a typical bell crank style latch mechanism
• All Billet tailgate latch dogs, 1 1/2" lower gate pin and 1/2" upper hinge

12' Aluminum Dump Body

• 12' aluminum dump on a F650
• Fold down sides, 2 each side with center post
• Chute door in tailgate
• Rear light valance with strobes and Hella twin optic floods
• Our diamond plate fenders
• Huge Protech toolbox
• The opposite side had a 100 gallon American Mobile Power
• transfer tank with a quick disconnect nozzle
• Whelen strobes on the side of the headboard as well

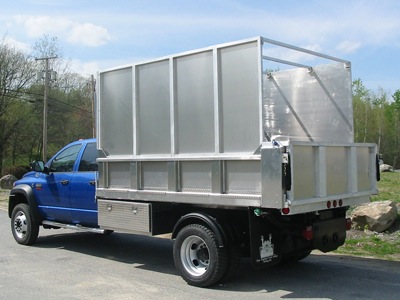

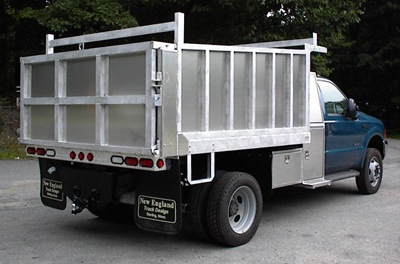

Tall Sided Aluminum Dump Body

• Tall fix sides aluminum dump body with tubular style frame
• 2 tailgates, Tall and Small. The taller one shown
• Removable rear ladder rack that stores forward in the body
• Custom L-Pack toolbox with lower step for access
• Strobe lights, hitch plate etc.

Tall Sided Aluminum Dump Body

• F-550 with tall sides dump
• Aluminum side boards painted to match the cab
• Aero aluminum electric tarp system
• Recessed steps in the latch boxes

Aluminum Dump Body

• This was the first Road-Craft dump body built in 99.
• Still in service and has not been back for any repairs since day 1

12' Aluminum Dump Body

• 12' aluminum dump on an F-550
• This body has a center gate to hold 2 loads
• The center gate latch locks open and closed
• Aero aluminum electric load cover

Standard 3/4 yd. Aluminum Dump Body

• Standard dimension 3/4 yd dump with 18" sides and 24" tailgate
• Smooth style custom fenders
• Protech polished 30" toolbox

Standard 3/4 yd. Aluminum Dump Body

• Another 3/4 yd on an F550.
• Custom I-Pack with built in transfer tank
• Removable lumber rack
• Custom fenders attached to the body

8' Aluminum Dump Body

• 1 Ton Pickup chassis
• 8' aluminum dump
• Fold down sides
• Rugby LR 416 hoist

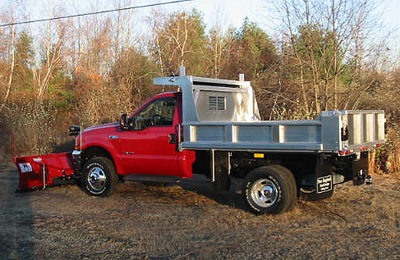

2/3 yd. Aluminum Dump Body

• F350 with 2/3 yd aluminum dump
• Removable ladder rack
• BOSS 9' Trip Edge plow

3/4 yd. Aluminum Dump Body

• F450 with 3/4 yd aluminum dump
• Fold down sides
• Protech I-Pack
• Aluminum splash gaurds
• Receiver style hitch plate
• 9' BOSS plow

16' Aluminum Hook Lift Body

• 16' Aluminum Hook Lift Body
• Shown here without cabshield
• Air latch quick disconnect tailgate
• LED flashers in the rear of the body

16' Aluminum Hook Lift Body

• Shown here with Donovan tarp system with elevating front frame

11' 3" Aluminum Dump Body

• Road-Craft 11' 3" Dump Bed
• Tall Removable Sides and Headboard
• Crossbows for a Mesh Top Across the Top
• Rugby 550 Hoist

11' 3" Aluminum Dump Body

• Another Road-Craft 11' 3" Dump Bed
• Millennium Side Lights
• Rugby 550 Hoist
• Custom Accessories

Aluminum Dump Body

• Diamond Plate Sideboard Extensions
• Fold Down Sides
• Donovan Tarp System
• Rugby 550 Hoist

14' Aluminum Dump Body

• 14' Aluminum Road-Craft Body with 54" Sides
• Waltco 2000lb Tuck-Away Lift Gate
• Aero Aluminum Electric Easy Cover
• Rugby LR 26 Hoist
• 48" ProTech Toolboxes
• All LED Lighting

Aluminum Dump Body

• Diamond Plate Sideboard Extensions
• Fold Down Sides
• Donovan Tarp System
• Rugby 550 Hoist

12' Aluminum Dump Body

• 12' aluminum dump body
• Barn doors w/ custom latch
• Click link for more

Aluminum Dump Body

• Dodge Power Wagon Pickup/Dump Conversion
• Rugby HR416 Hoist
• Custom Modified Pro-Tech Toolboxes
• New Snaplatch Upper Tailgate Latch

3/4 yd. Aluminum Dump Body

• Ford F450
• Road-Craft 3/4 yd aluminum dump body
• Hot shift PTO with central hydraulics for dump and sander
• Torwel 3 yd stainless sander
• Boss 9'2" poly vee plow
• Emergency lighting

10' Aluminum Dump Body

• Road-Craft 10' dump
• Replaced old steel body
• Fold down sides
• Barn doors at rear
• Side step ladders

11' Removable Tall-Sided Dump Body

• 11' dump body with tall removable side boards
• 2 way gate with barn doors above
• Tail light valance with LEDs
• LED marker lights down the side of the body
• Combination hitch plate

4-5 yd. Aluminum Dump Body

• New F550
• 4-5 yd Road-Craft dump body
• Rugby HR 540 hoist
• Road-Craft fenders
• Hitch plate with 2" receiver and combo pintle
• Boss 9'2" poly vee XT snow plow

3/4 yd. Aluminum Dump Body

• Road-Craft 3/4 yd. dump body
• Extended board pockets
• Styrip steps for access
• Trucklite LED strobes
• Splash guards forward of wheels

12' Aluminum Grain Dump Body

• Road-Craft 12' aluminum grain body
• Heavy construction removable sides
• Rugby HR 550 hoist
• Protech 48" tool boxes
• Third body for this customer with a fourth on order

Reading Flatbed Dump Body

• Reading Flatbed Dump
• Custom Aluminum Chipper Box
• Barn Door Tailgate
• Heavily Built
• Emergency Lighting

4-5 yd. Aluminum Dump Body

• Road-Craft 4-5 yard aluminum body on a F550
• Removable leaf/chipper box with vented roof
• Ford F550
• 4-5 yd Road-Craft dump body
• Rugby HR 540 hoist
• Road-Craft fenders
• Hitch plate with 2" receiver and combo pintle
• Boss 9'2" poly vee XT snow plow

Switch N' Go Dump Body

• New F450
• Switch N Go body setup
• 4 interchangeable bodies
• Dump body
• Flatbed
• Storange container
• Grain body

Leaf Box Dump Body

• New leaf box for a municipal application
• Full height rear door
• Eliminating the tailgate allows a simpler dump cycle

3/4 yd. Aluminum Dump Body

• New Road-Craft aluminum 3/4 yard body
• New formed tailgate with 1/4" sheet and 3/16" thick stiffeners
• New outside access top latch
• Protech 36" toolboxes
• Buyers tarp system built into cab shield

Tall-Sided Utility Dump Body

• Tall-Sided Utility Dump
• Truck Built for the Government
• Large Cavernous Boxes with Built-In Shelving
• 3yd Dump with Rugby HR520 Hoist
• Completely Custom Tailgate Latch Assembly
• Pneumatically Operated Doors

Tall-Sided Dump Body

• New F550 with a tall sided custom aluminum body
• Deweze clutch pump hydraulics with diverter system
• Rugby HR 550 hoist
• Perkins cane lifter for recycling containers
• National scale load cells and weightning system

CLICK HERE TO SEE A DETAIL

Rot Replace Dump Body

• This truck had a rotted body and frame
• Duplicated the old body using aluminum
• Replaced rear half of chassis
• New cross members/shock mounts
• Reused existing hoist
• Removable upper section of the headboard
• Removable side boards
• Rear side board pockets
• Removable upper screen section over barn doors
• Replace old toolbox with new 36" Protech box

3/4 Yd. Dump Leaf Box

• Road-Craft 3/4 yd. dump body
• Protech toolboxes w/ polished doors
• Road-Craft aluminum fenders

Fold Down Side Dump Body

• New Dodge 5500
• Road-Craft fold down side body
• 24" sides and 30" tailgate
• Optional heavy duty 3/8" 6061 floor
• Protech toolboxes
• Rugby HR 550 hoist
• 10 ton combo hitch and 2" receiver

Fold Down Side Dump Body

• Road-Craft 3/4 yard aluminum dump body
• Rugby HR 540 hoist
• Road-Craft smooth aluminum fenders
• Protech 30" toolboxes with polished doors
• Emergency LED flashers under the rear skirt
• Painted aluminum side board to match the cab

16' Aluminum Dump Body

• 16' Road-Craft custom aluminum body
• 60" side
• 3/8" floor with 4" I-beams 12 oc
• Full height center gate with air latch release
• Formed 9 panel tailgate with 1/4" skin and air release
• Rugby LR28 hoist with direct mount pump
• Buyers electric tarp with aluminum arms
• Whelen strobe lights
• Protech 36" toolbox

Custom Dumping Flatbed

• 1975 Dodge 1 ton ex fire truck
• Road-Craft custom flatbed body with lift out sides
• Rugby hoist
• Protech 24" toolboxes
• All new diamond plate on the back of the cab
• Model A fender welting trim and doors in the front fender extension area
• Dee Zee tough steps modified to fit
• This truck has all new paint, interior, wheels and tires

CLICK HERE TO SEE A DETAIL

10' Road-Craft Dump Body

• New 2012 IH Terrastar for a municipal application
• 10' Road-Craft dump body
• Rugby HR 550 hoist
• Hitch plate with 20 ton pintle and 2" receiver
• Protech 30" toolbox
• Poly fender
• Maximma emergency lighting
